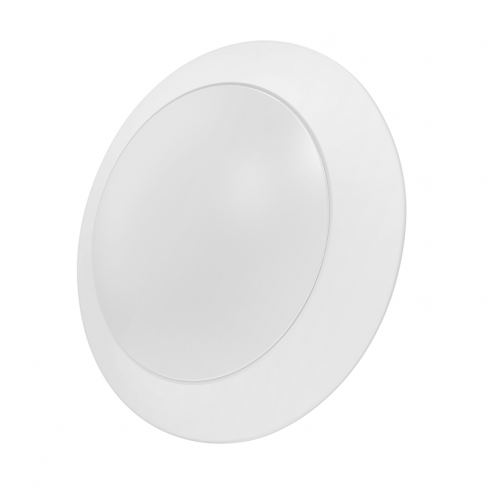

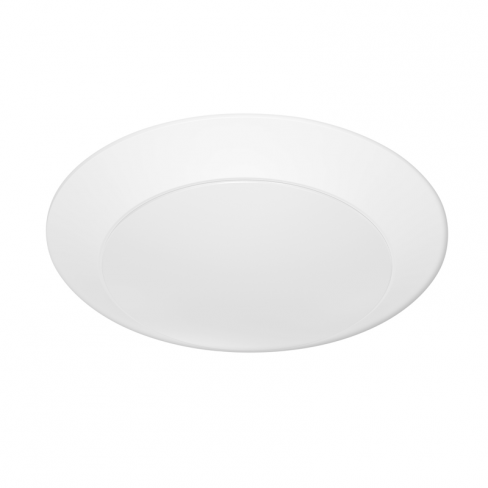

6Inch Flush Mount LED Disk Light,3000K

DESCRIPTION:

This elegant design product can provide exceptional performance in general lighting application for home, hotel, motel, and can also serve as a cost effective temporary lighting solution with triac dimming. Featuring driver on board technology that increases performance and reliability. lt is suitable for junction box series which make it easy to install and instant on.

APPLICATION

FEATURE AND BENEFIT

SPECIFICATION FEATURES

High brightness with 1050 Lumens output equivalent to 75-Watt incandescent.

Smooth dimming range from 10% to 100% with a 0-Volt dimmer.

MOUNTING

Surface mount on 3.5 in.Hole spacing junction box.

CONSTRUCTION & OPTICS

Unit includes die-cast metal housing, LED array, heat sink, lens, smooth disk trim.

High quality PC lens.

Efficiency LED array.

Diffuse for uniform illumination.

Optional PMMA lens available.

.

COMPLIANCE/CERTIFICATION

ETL certified.

EMI/RFI emissions per FCC 47CFR Part 15B.

RoHS compliant, contains no contains no mercury or lead.

Suitable for wet locations.

3-LEVEL POWER & CCT TUNABLE

SPECIFICATION

DIMENSION

Length(Inch)

7.47

Wight(Inch)

7.47

Height(Inch)

1.16

Weight(LB)

0.58

ORDERING INFORMATION

Series

HT-G6D1D-6C-15-930-1-11

CRI

90

Power

15W

CCT

3000K

Lumens

1050LM

Efficacy

70LM/W

Dimmable
