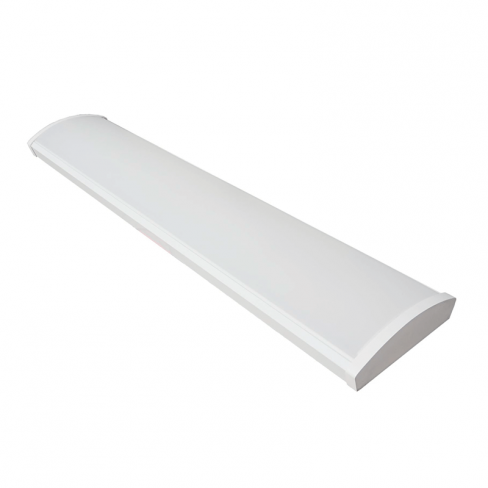

4FT LINEAR LED WRAP-AROUND LIGHT

DESCRIPTION:

Gauge galvanized steel housing with high reflective, matte powder coated paint Attractive and high transmission architectural dual optical lens 120-277V Input, 50/60Hz Beam angle: 120° PF >0.9 CRI >80 120° degree beam angle even lighting distributionAvailable in wide range of color temperature from 3500K-5000KAmbient temperature: -20℃ to 50℃Suitable for dam

4FT LINEAR LED WRAP-AROUND LIGHT

4FT LINEAR LED WRAP-AROUND LIGHT

APPLICATION

FEATURE AND BENEFIT

Gauge galvanized steel housing with high reflective, matte powder coated paint

Attractive and high transmission architectural dual optical lens

120-277V Input, 50/60Hz

Beam angle: 120°

PF >0.9

CRI >80

120° degree beam angle even lighting distribution

Available in wide range of color temperature from 3500K-5000K

Ambient temperature: -20℃ to 50℃

Suitable for damp location use

5 year limited warranty

Smooth 0-10V DC dimming feature and compatible with a wide variety of dimmers

UL/FCC/DLC certificated

3-LEVEL POWER & CCT TUNABLE

SPECIFICATION

Product Type

HT-G5WRAP-4FT-8483/277-235D

Brightness

3680/4600/5520lm

Input Wattage

32/40/48W

Efficacy

115lm/W

Power factor

>0.9

Color Temp

3500K/4000K/5000K

Life Span

50000hrs

CRI

80+

Beam Angle

140°

Input Voltage

120-277Vac

Dimmable

0-10V dimmable

Operating Temp

from -40°F to 113°F

Input Frequency

60HZ

Dimensions

48.6"x6.06"x2.6"
