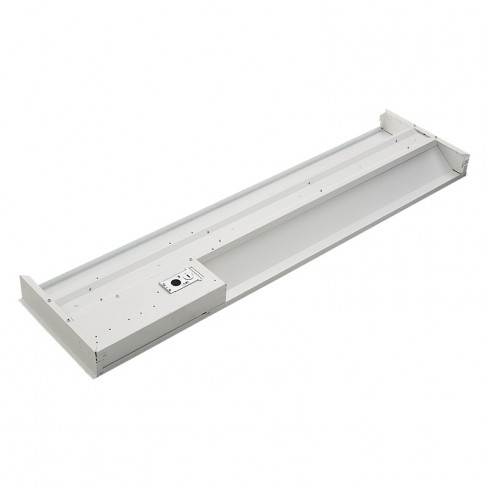

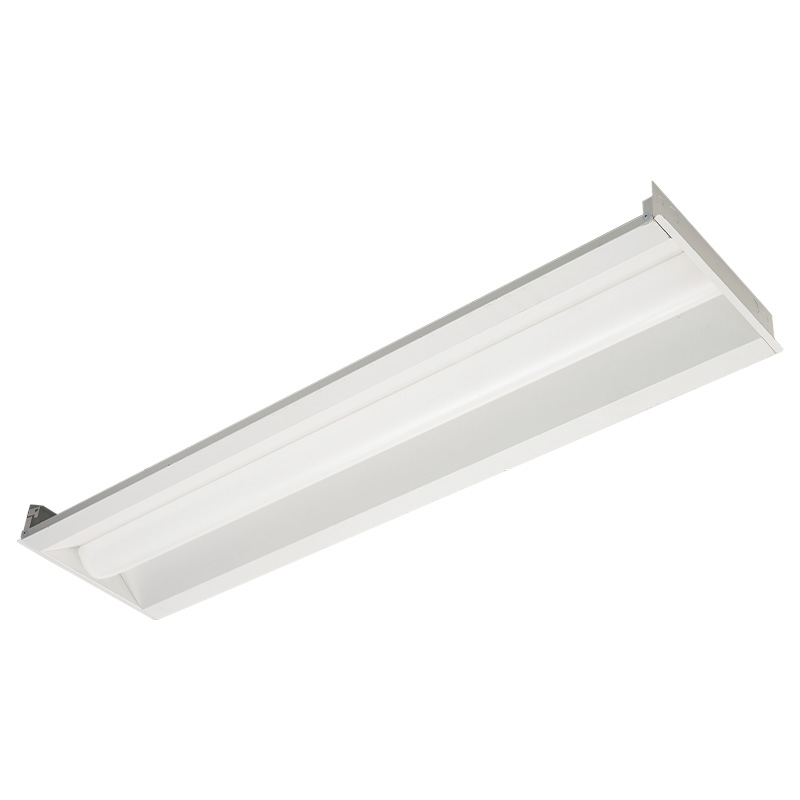

HT-CBTRO14 277-8303-235D
DESCRIPTION：
DRIVER•120-277V universal input voltage.•0-10V smooth flicker free dimmable.MOUNTING•Designed for mounting directly on the dropceilingCONSTRUCTION & OPTICSUnit includes die-cast metal housingLED array, heat sink, lens, foam gasketbaffle trim ring, safety cable with hookand junction box.•Unit includes heavy duty metal frame, LEDarray, heat sink, lens and gask

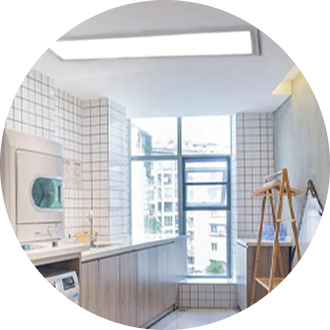

Home

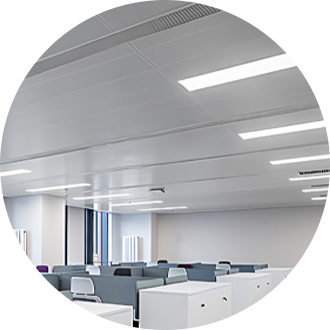

Office

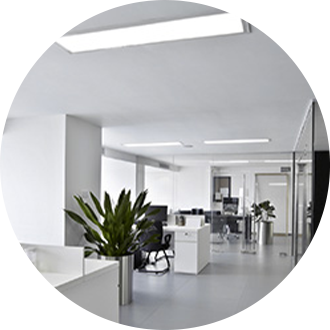

Office
•120-277V universal input voltage.
•0-10V smooth flicker free dimmable.
•Designed for mounting directly on the drop
ceiling
Unit includes die-cast metal housingLED array, heat sink, lens, foam gasketbaffle trim ring, safety cable with hookand junction box.
•Unit includes heavy duty metal frame, LED
array, heat sink, lens and gasket
•High quality frosted PC lens
•Efficiency LED array
•Diffuse for uniform illumination.
•CRI 80+
Product Dimension
47 .8"X11.9"X2.75"
Product Weight
10.12LBS
Package Dimension
48.7"x12.8"x3.6"
Package Weight
12.35LBS
Model:
HT-CBTRO14 277-8303-235D
CRI
80
Power
20/25/30W(Wattage Selectable)
CCT
3500K/4000/5000K
Lumens
2500/3125/3750LM
Efficacy
125LM/W
Dimmable
0-10v
