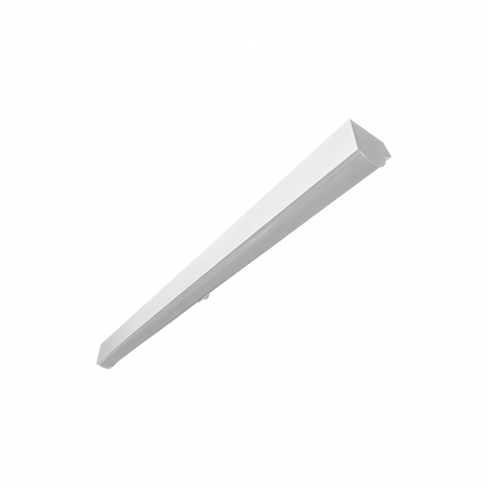

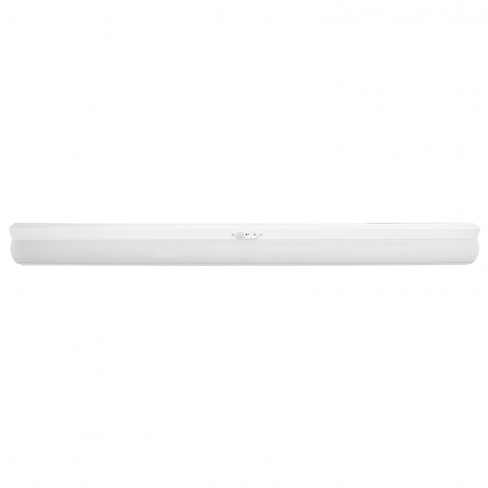

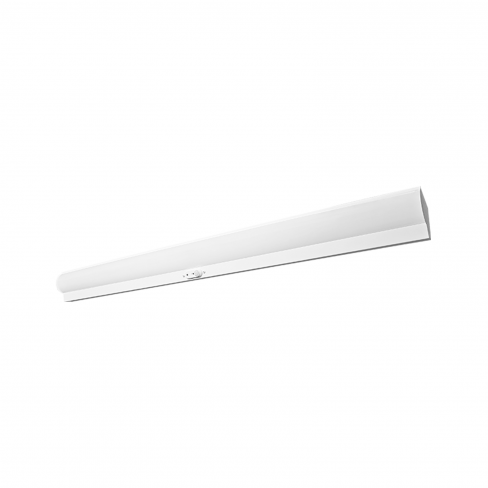

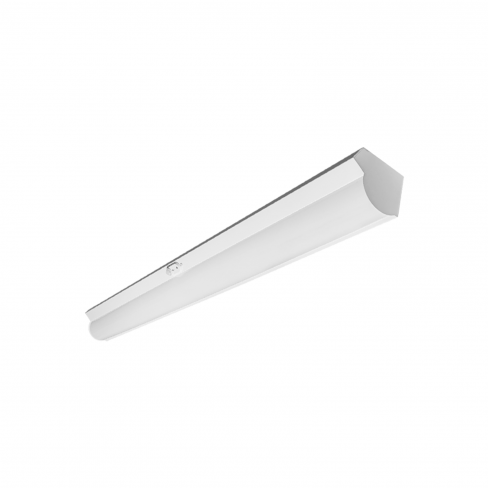

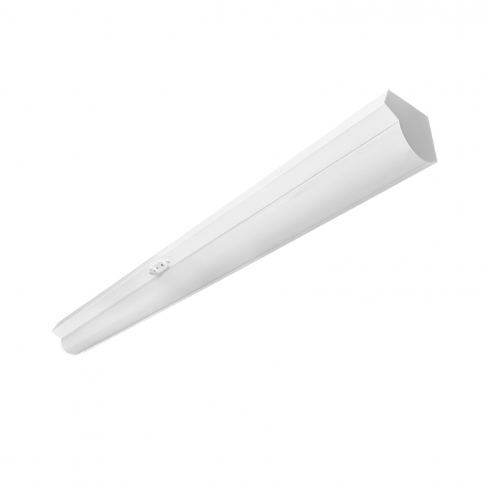

HT-STW-4FT277-8553-235D

DESCRIPTION：

CONSTRUCTION & OPTICSDLC listed, 120 LPW.Available in 48".Fixed or Field-adjustable Power and CCT.EM solution ready.(optional)UL ListingSuitable for damp locationsLEDsLong-life, high-efficacy,micro-power LEDsLifespanLumen Maintenance,L70>100,000 hoursDimming DriverDriver includes dimming control wiring for 0-10Vdimming systems.The dim-to-off voltage thresholdof

Contact where to buy

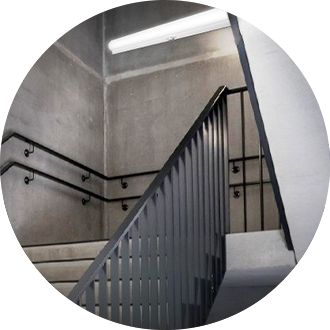

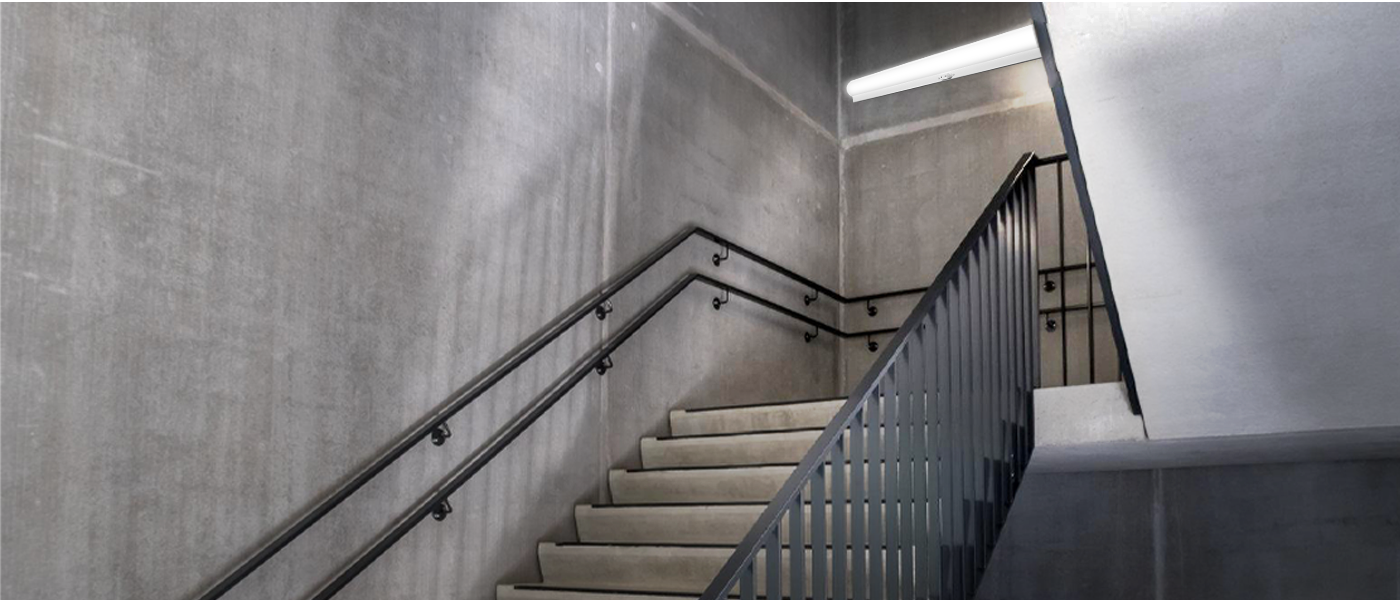

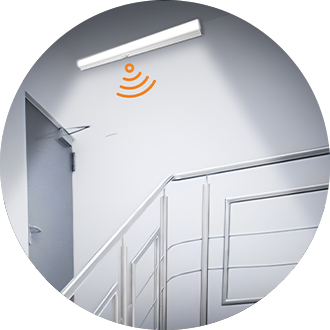

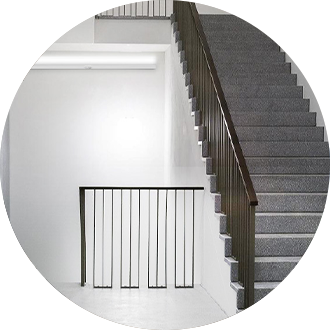

STAIRWELL

APPLICATION

STAIRWELL

STAIRWELL

STAIRWELL

FEATURE AND BENEFIT

CONSTRUCTION & OPTICS

DLC listed, 120 LPW.

Available in 48".

Fixed or Field-adjustable Power and CCT.

EM solution ready.(optional)

UL Listing

Suitable for damp locations

LEDs

Long-life, high-efficacy,micro-power LEDs

Lifespan

Lumen Maintenance,L70>100,000 hours

Dimming Driver

Driver includes dimming control wiring for 0-10Vdimming systems.The dim-to-off voltage thresholdof optional 12V AUX integrated driver ranges from0.1V to 0.5V.

3-LEVEL POWER & CCT TUNABLE

3000K

4000K

5000K

SPECIFICATION

DIMENSION

Length(Inch)

47.87

Wight(Inch)

3.94

Height(Inch)

3.43

Weight(LBS)

4.96

ORDERING INFORMATION

Model:

HT-STW-4FT277-8553-235D

Product Description

STAIRWELL

Finish Color

White

Input Frequency

120-277V 50/60Hz

Light Wattage(Fixture)

35/45/55W

LED Color Temperature(Kelvin)

3000K/4000/5000K(CCT Selectable)

LED Lumen Output(Fixture)

4200-5400-6600LM

LED CRI

Dimming

0-10V

Specification
