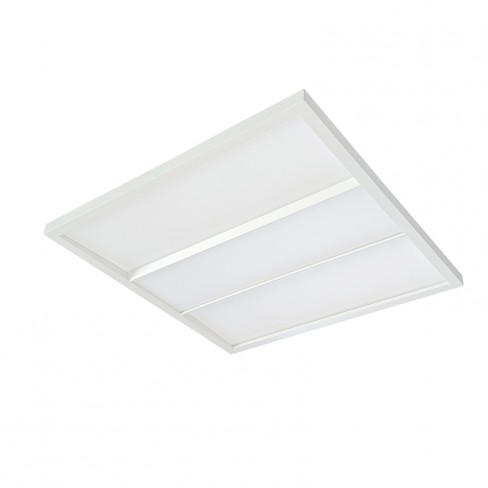

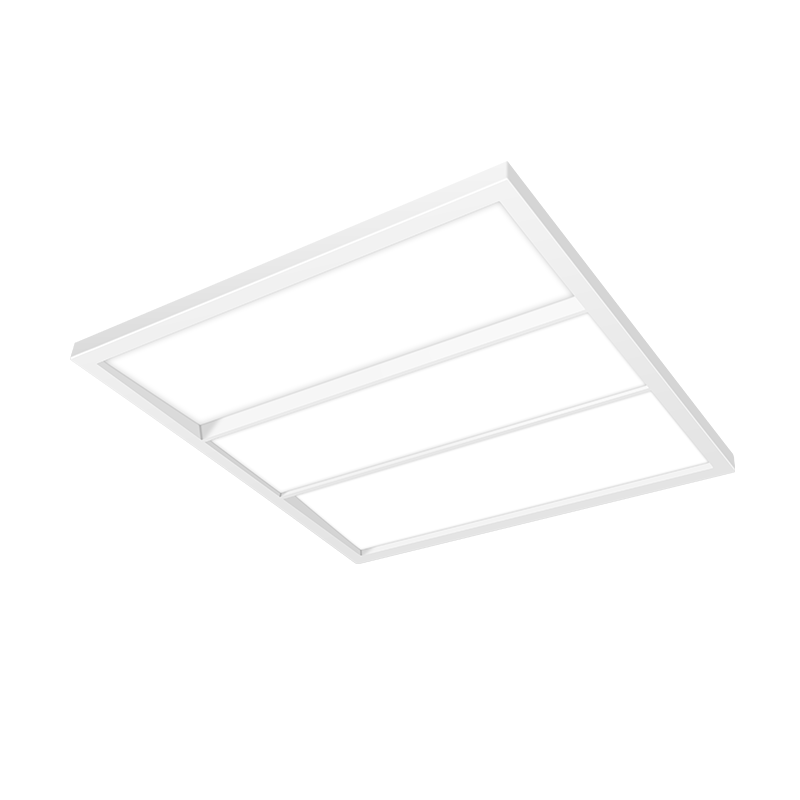

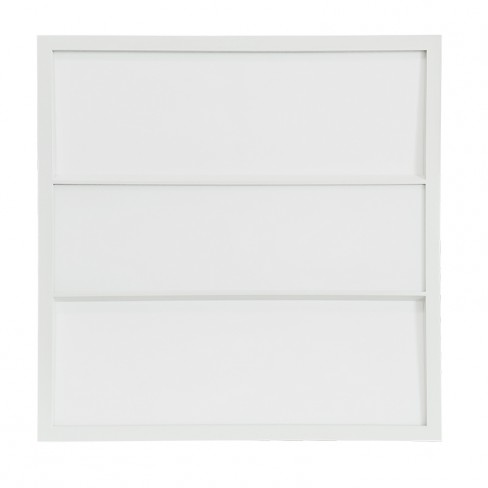

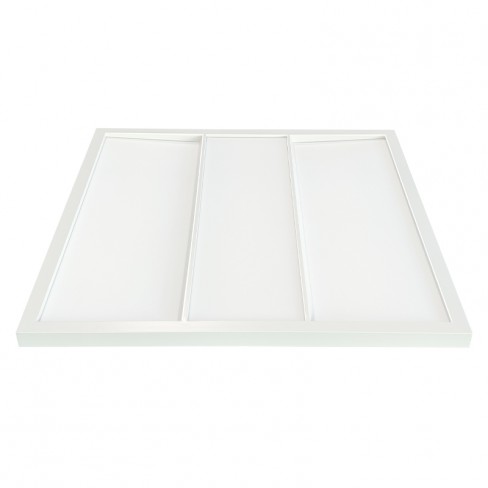

MTFE22-20/30/40W-3CCT
DESCRIPTION：
DRIVER•120-277V universal input voltage.•0-10V smooth flicker free dimmable.MOUNTING•Designed for mounting directly on the dropceilingCONSTRUCTION & OPTICSUnit includes die-cast metal housingLED array, heat sink, lens, foam gasketbaffle trim ring, safety cable with hookand junction box.•Unit includes heavy duty metal frame, LEDarray, heat sink, lens and gask

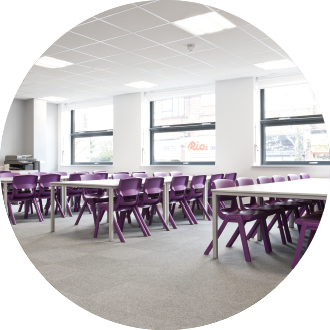

classroom

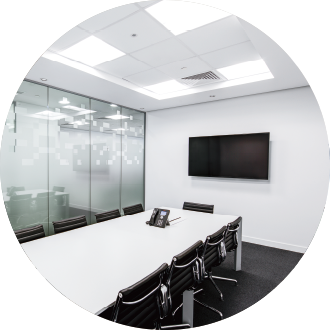

Meeting-room

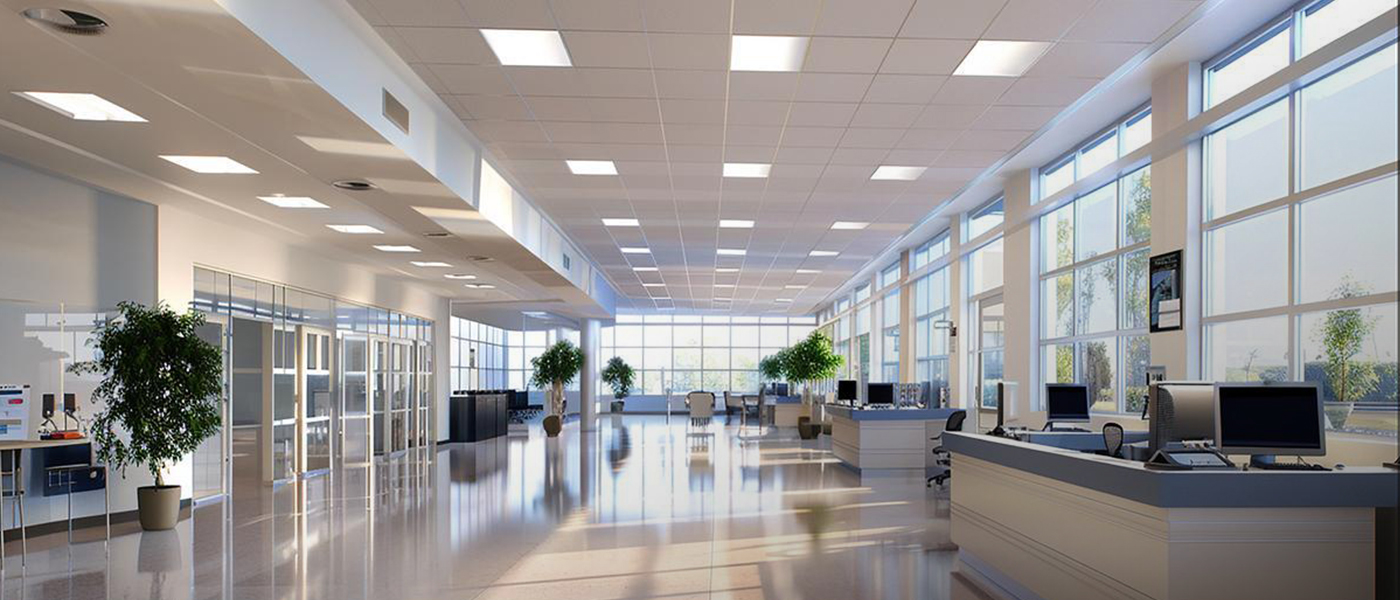

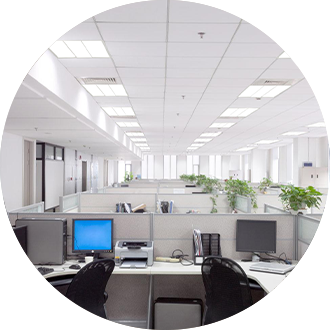

Office
•120-277V universal input voltage.
•0-10V smooth flicker free dimmable.
•Designed for mounting directly on the drop
ceiling
Unit includes die-cast metal housingLED array, heat sink, lens, foam gasketbaffle trim ring, safety cable with hookand junction box.

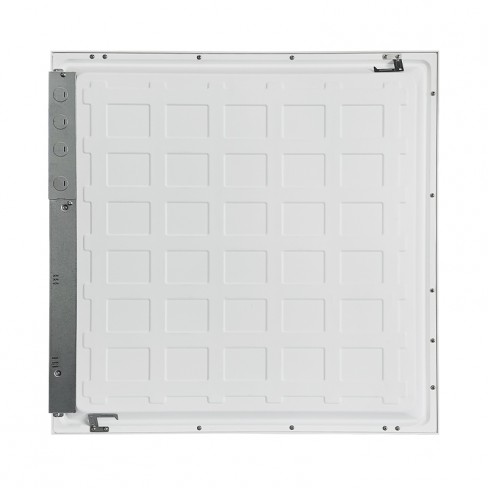

•Unit includes heavy duty metal frame, LED
array, heat sink, lens and gasket
•High quality frosted PC lens
•Efficiency LED array
•Diffuse for uniform illumination.
•CRI 80+

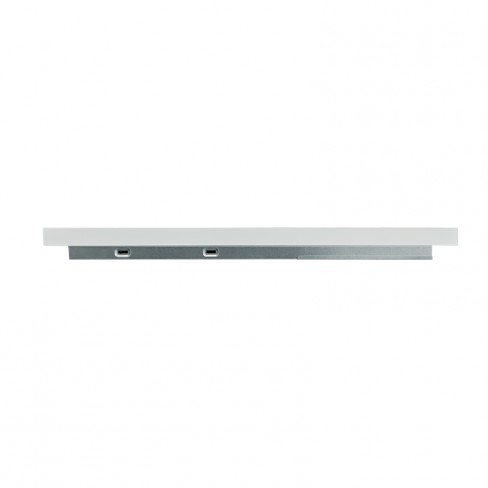

Product Dimension
23.74"x23.74"x1.02"/1.86“
Product Weight
4.85LBS
Package Dimension
24"x24"x2.1"
Package Weight
6.04LBS
Model:
MTFE22-20/30/40W-3CCT
CRI
80
Power
20-30-40W(Wattage Selectable)
CCT
3500K/4000/5000K
Lumens
2200/3300/4400lm
Efficacy
110LM/W,
Dimmable
0-10v
