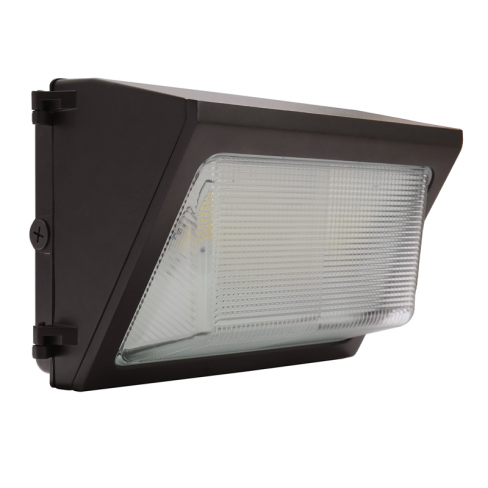

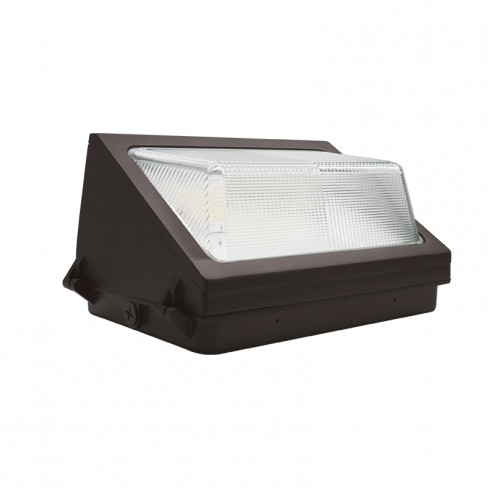

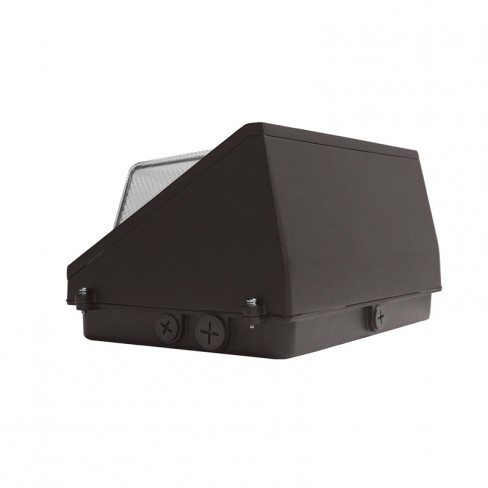

120W CCT & Wattage Selectable LED Wall Pack

DESCRIPTION:

LED wall pack are a versatile solution for all your outdoor lighting problems. These lights can be installed anywhere around your property. These wall pack can be installed in both upward or downward fashion to illuminate your outdoors at different beam angles. Mounting these lights is a simple process enabling you to do an easy and quick installation. To change the beam angle a user simply has to loosen the thumb-screw, move the fixture onto the desired position, and then retighten the screw.

APPLICATION

FEATURE AND BENEFIT

PRODUCT DESCRIPTION

Luminous Efficacy:145LM/W

AC120-277V

0-10v dimmable

CRI>70,PF>0.9

IP65

5 Years Warranty

UL/DLC/FCC Certifications

3-LEVEL POWER & CCT TUNABLE

SPECIFICATION

DIMENSION

Type

80-100-120W

Length(Inch)

14.21

Wight(Inch)

9.29

Height(Inch)

7.6

Weight(LB)

9.17

ORDERING INFORMATION

Series

LJC-WPN-14/277-7120C-35ED-V1

CRI

70

Power

80/100/120W

CCT

3500K/4000/5000K(CCT Selectable)

Lumens

16800LM

Efficacy

140LM/W

Dimmable

0-10v
