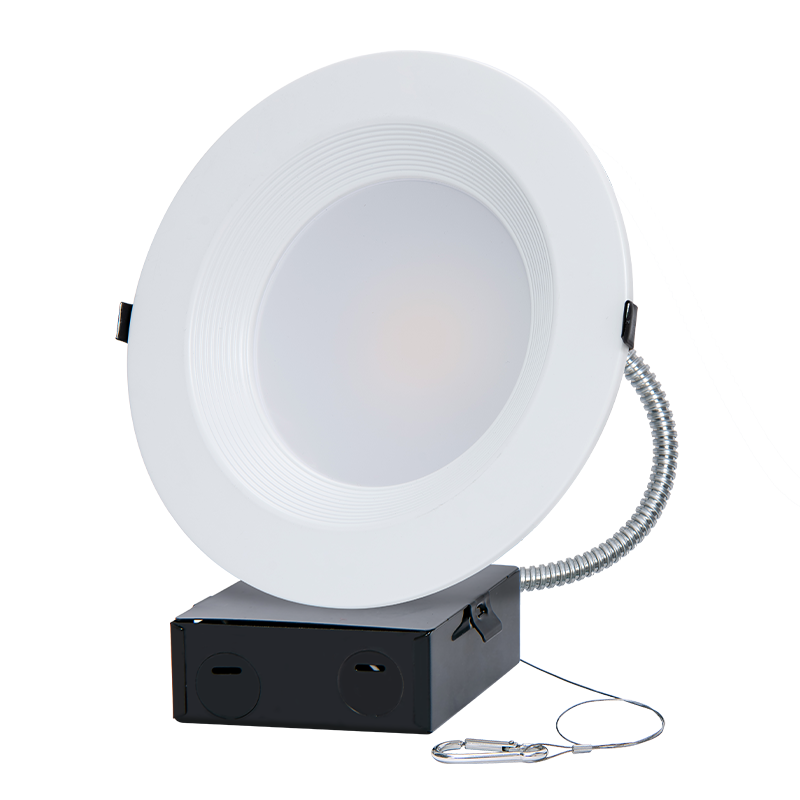

10 Inch CCT & Lumen Adjustable LED Commercial Down Light
DESCRIPTION：
Direct LED replacement conventional recessed downlight. Field select from three lumen outputs using Select Drive technology with adjustable during 3 stage 50%, 75%, 100%, and three color temperature select in 3000/4000/5000K. Universal 120-277v, 50/60 Hz drivers available. Universal 0-10V drivers dimmable to 10% with low end cutoff. Die cast heat heat sink maximizes passive thermal management and achieves a L70 rated lifetime of 50,000 hours. UL Classified and Listed for wet locations. IC Rated for direct contact with insulation.
LED Commercial downlight
LED Commercial downlight

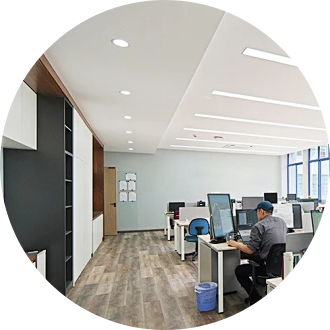

Office

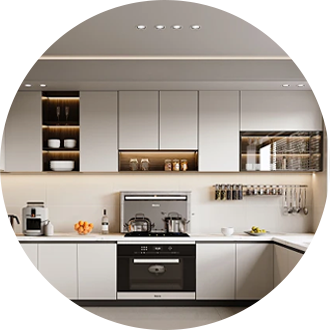

The kitchen
Auditorium

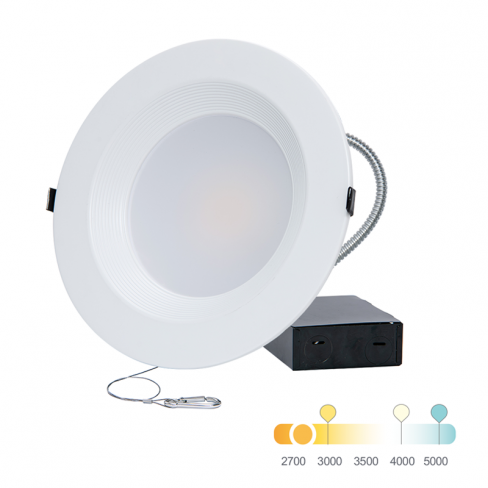

3CCT-Select color temperature from 3000K soft white, 4000K cool white, or 5000K daylight for you environment.
The CCT and light output switch is located on the back of fixture, easy to organize.
Canless design, no can housing needed for the installation.
Pre-installed torsion spring clips.
Unit comes with wiring nuts, no electrical tap and special tools required for the installation.
Unit includes die-cast metal housingLED array, heat sink, lens, foam gasketbaffle trim ring, safety cable with hookand junction box.
High quality PClens.
Efficiency LED array.
Diffuse for uniform illumination.
Baffle trim reduces glare for soft,comfortable illumination.
Optional PMMA lens available.
3000K
4000K
5000K
Length(Inch)
11.22
Wight(Inch)
11.22
Height(Inch)
5.05
Weight(LBS)
0.9
Series
HT-US-ICCDR10-837/277-30111-C03-0-V1(30-50)
CRI
80
Power
22/29/37.5W(Wattage Selectable)
CCT
3000K/4000/5000K
Lumens
2300/3000/3700LM
Efficacy
105LM/W
Dimmable
0-10v
