LJC-LHB-4FT2L-F82701-277-250D-S

DESCRIPTION:

LED high bay light provides an exceptional quality lighting environment and more productive ambiance for workplaces, retail, office and school with high efficiency. Compared with conventional fluorescent fixtures, LED offers more than 60% or more energy saving and last at least 50ooo-hours with DLC standard or premium compliance. Ofering substantial energy savings and no mercury lamp content.These fixtures are DLC and UL certified.

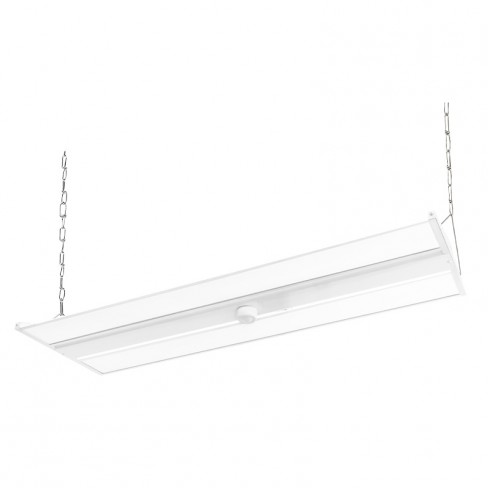

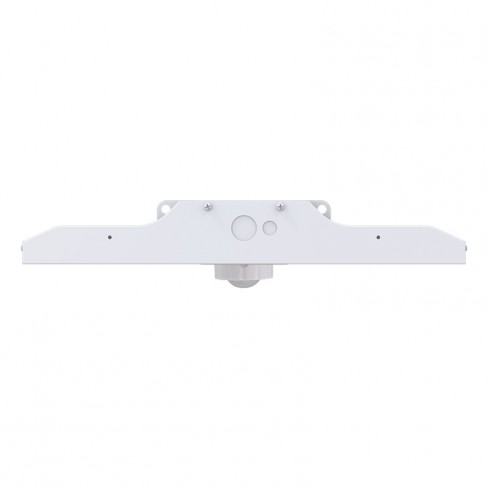

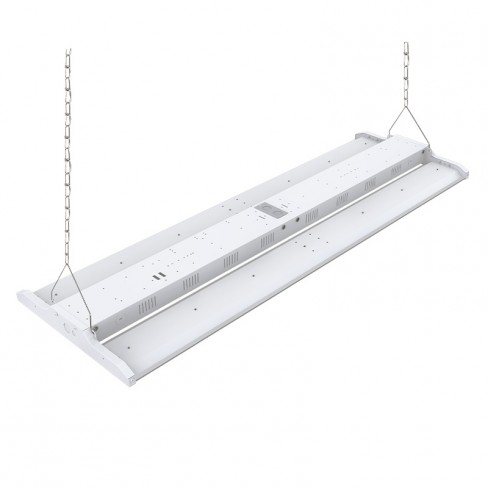

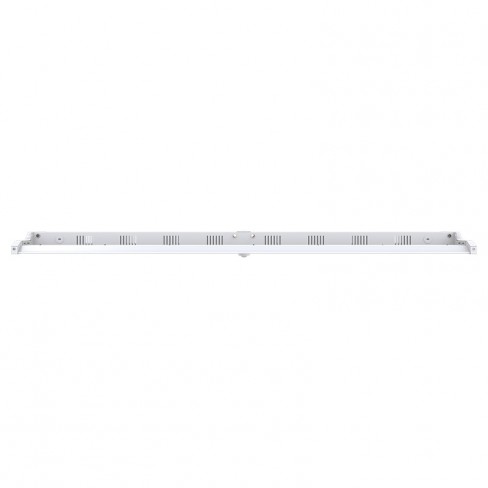

Linear High Bay Light

Linear High Bay Light

APPLICATION

FEATURE AND BENEFIT

CONSTRUCTION & OPTICS

Unit includes heavy duty metal frame, LED

array, heat sink, lens and gasket

High quality frosted PC lens

Efficiency LED array

Diffuse for uniform illumination.

CRI 80+

motion sensor

DRIVER

120-277V universal input voltage.

0-10V smooth flicker free dimmable.

MOUNTING

Hanging mount

Surface Mount (Optional)


COMPLIANCE/CERTIFICATION

UL 8750 LED equipment in Lighting Products



3-LEVEL POWER & CCT TUNABLE

SPECIFICATION

DIMENSION

Product Dimension

46.5"x15"x2.2"

Product Weight

11.86LBS

Package Dimension

47.2"x15.3"x2.6"

Package Weight

14.24LBS


ORDERING INFORMATION

Model:

LJC-LHB-4FT2L-F82701-277-250D-S

Input Frequency

120-277V 50/60Hz

Light Wattage(Fixture)

270W

LED Color Temperature(Kelvin)

5000K

LED Lumen Output(Fixture)

40500LM

LED CRI

80

Dimming

0-10v
